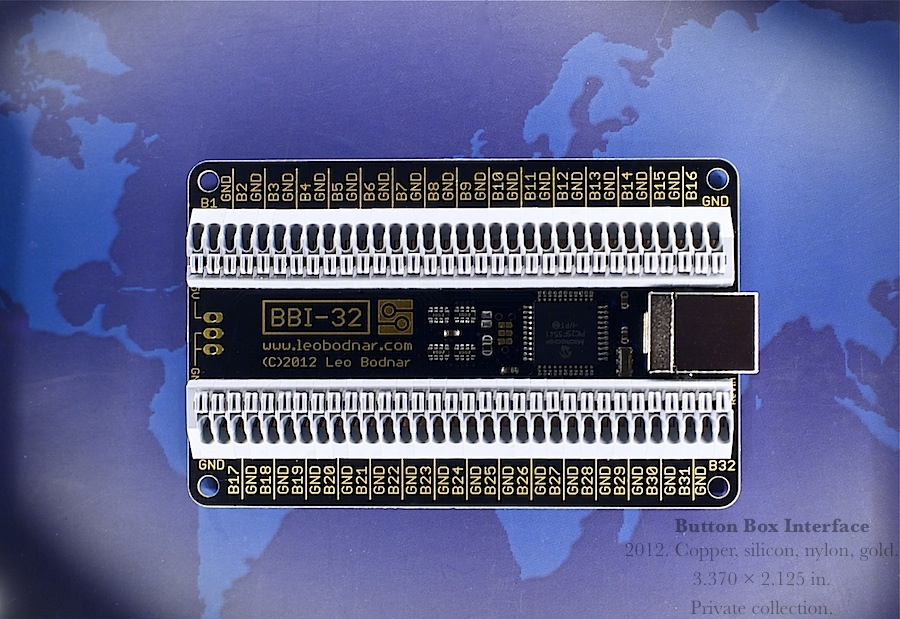

Button Box Interface BBI-32
Size: 3.370 x 2.125 in (85.60 x 53.98 mm.)
In other words exactly the size of a standard credit
- Finished in monochrome - black and (real) gold.
Hardware can look beautiful.
- Input capability:
Up to 32 buttons or switches.
Up to 16 encoders. All popular encoder types - one, two and four transitions per "click" (CTS, ELMA, ALPS.)

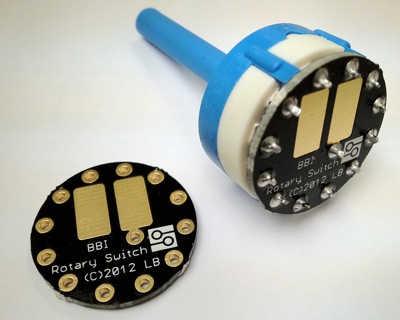

Up to 11 rotary switches (12 positions each.)
- Rotary switches connect with only two wires each.
- +5V power for illuminated switches or extra LEDs.
- Two models available:
Model 1: Solderless, push-in terminals. Everybody's favourite.
Model 2: No terminals but large, clearly marked solder
pads on the PCB for direct soldering on. Artisan / budget version.
- Everything from concept sketch and hardware design to the last bit in firmware code created by yours truly on the Silverstone circuit. Without globalisation or outsourcing.
