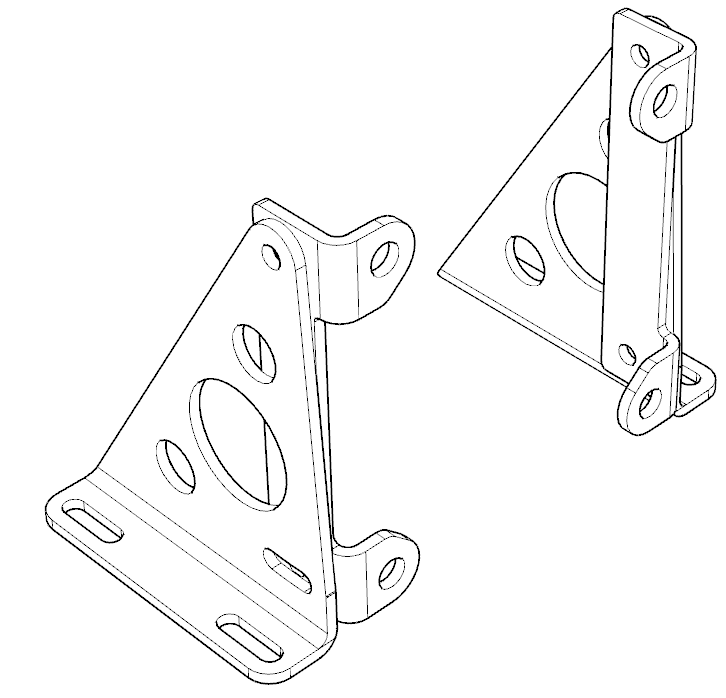

Adjustable Motor Mounting Bracket

Price: $74.86  $56.15
Save: 25% off

Please Choose:








IN STOCK

Adjustable mounting bracket for the SimSteering motor.
Can also be inverted to suit certain installations.
Forwards and backwards tilt.
Supplied with all necessary nuts, bolts and washers.


Two Sizes Available

Low Version High Version
Overall Bracket Height: 117 mm
Distance from mounting surface to bottom of motor: 9mm
Adjustment Range (Based on 52 Motor): -3.5 to +3.5 deg
Overall Bracket Height: 150 mm
Distance from mounting surface to bottom of motor: 42 mm
Adjustment Range (Based on 52 Motor): 0 to 20 deg

Material: Painted Stainless Steel

Any taxes will be removed for non-EU countries when entering your shipping address at the checkout.

Motor Bracket Mounting Dimensions
