Fast risetime pulse generator

Price: 49.99GBP





QTY:

IN STOCK

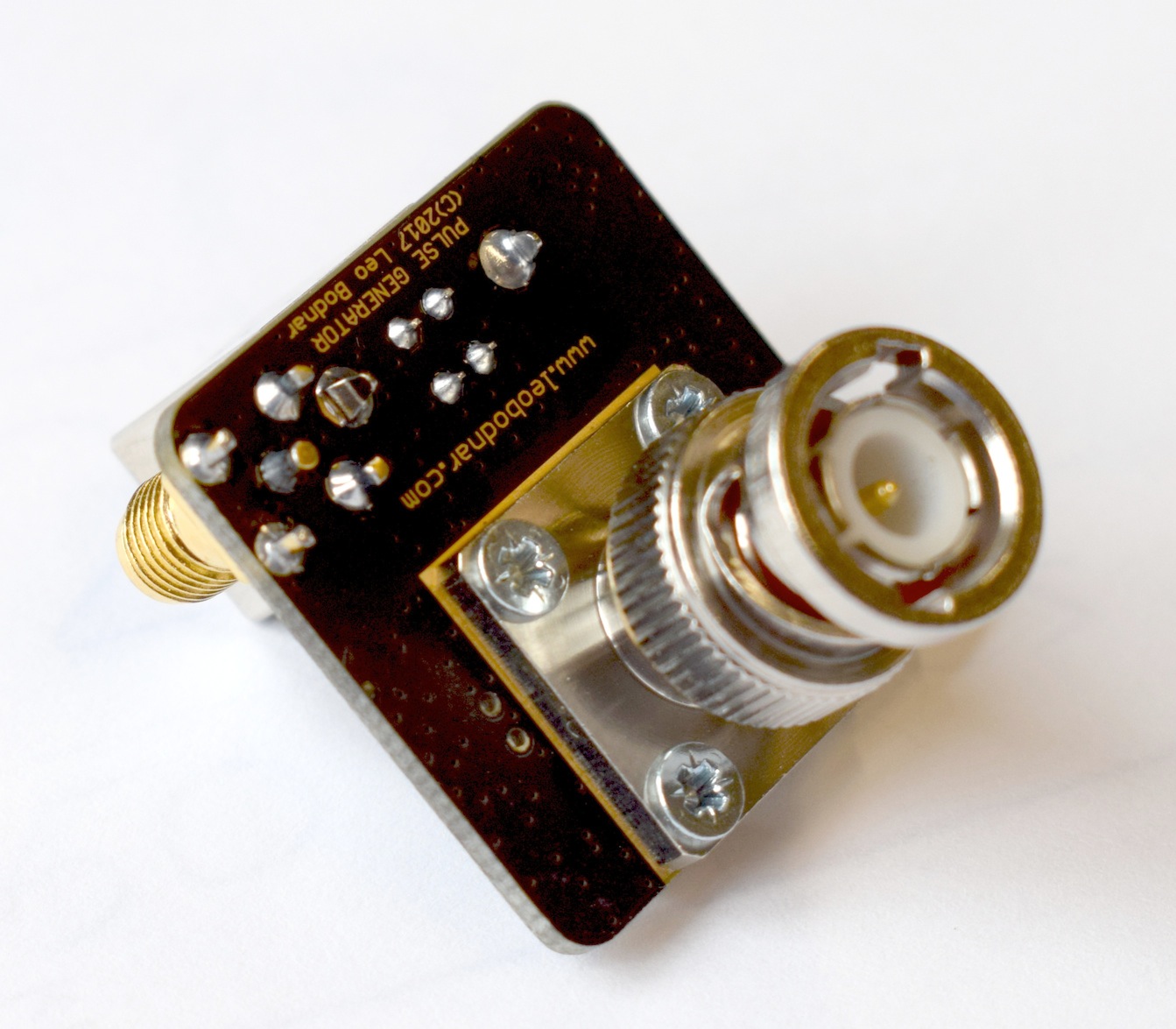

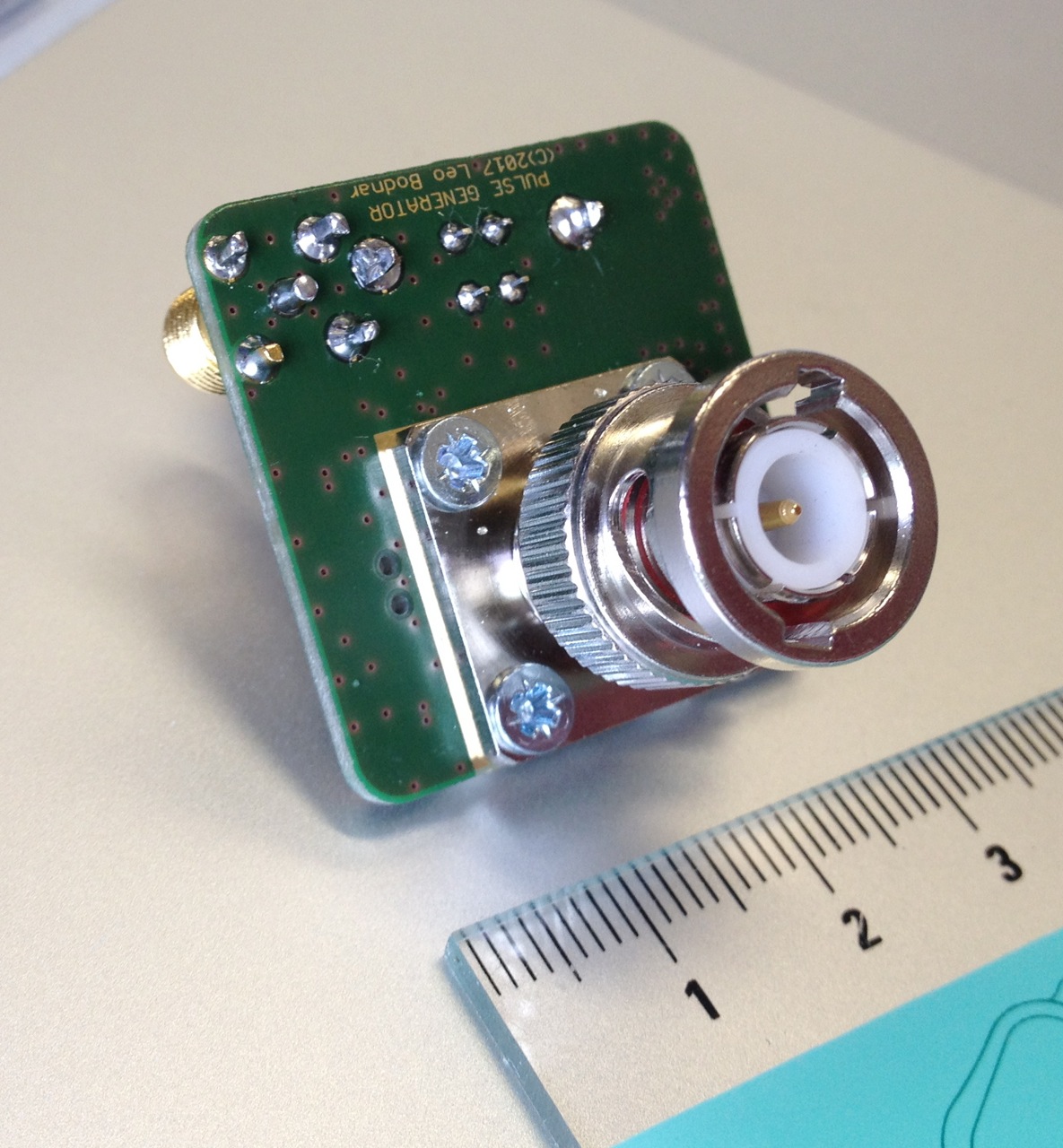

Fast risetime (40ps) pulse generator

This tiny device generates pulses with extremely fast rise and fall times - 40 picoseconds or better.

Intended use includes:

  • testing lab instruments and probes frequency bandwidth and risetime
  • time domain reflectometry - TDR
  • generating wide spectral contents signal with harmonics extending into tens of GHz

Features of the pulser:

  • 10MHz 2.5ppm pulse train with 50% duty ratio

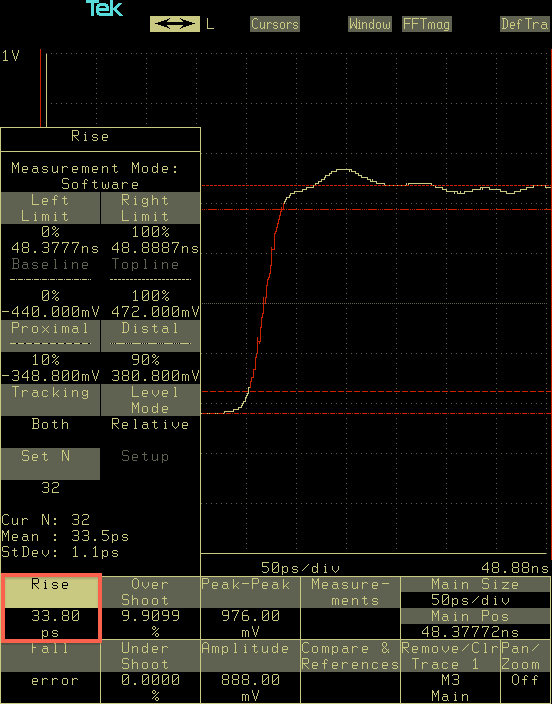

  • Rise time and fall time of 40ps or better
  • Output signal amplitude 50mVpp to 1.2Vpp (set via USB.)  AC coupled
  • Trigger output with 1.5Vpp amplitude into 50R load.  AC coupled

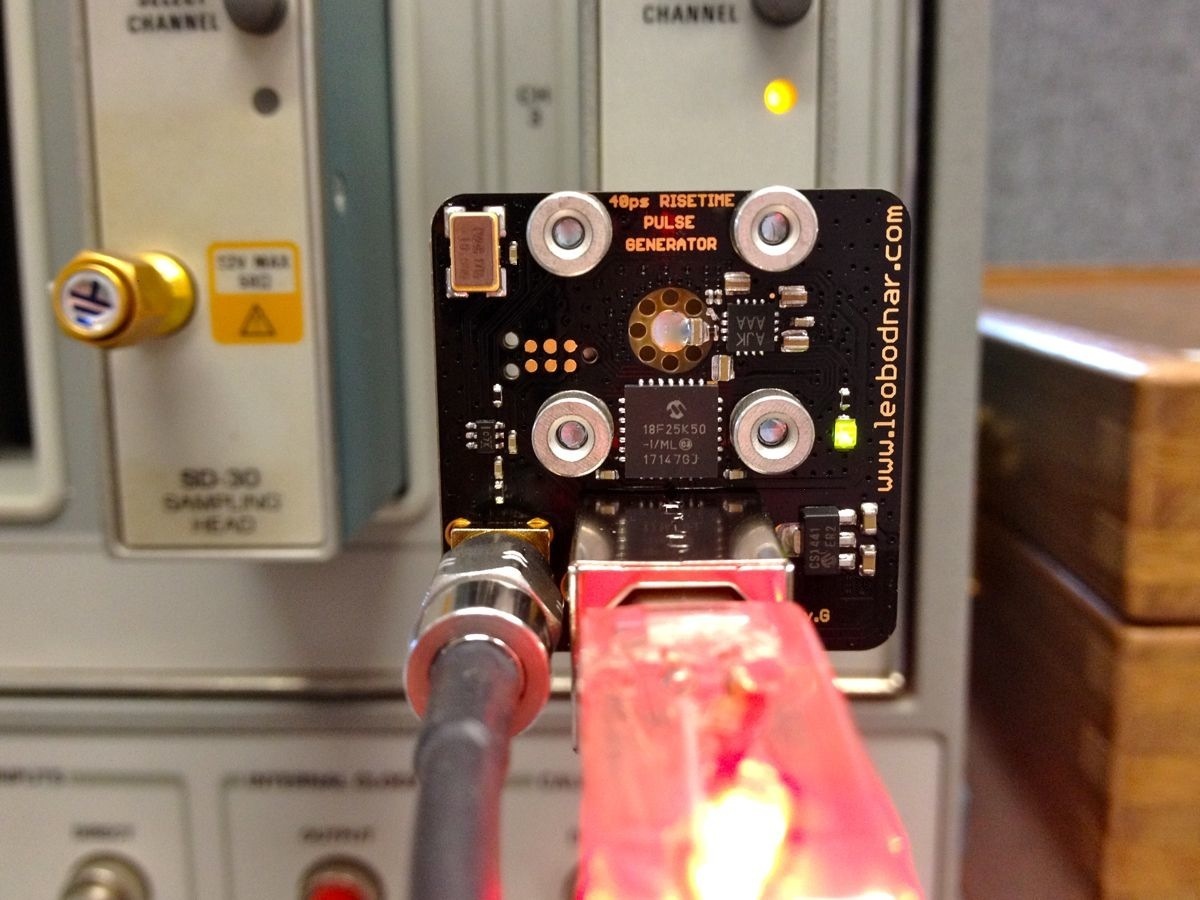

  • BNC jack for direct connection to oscilloscope input
  • USB powered - requires 200mA at 5V.  Can be used with USB charger or powerbank

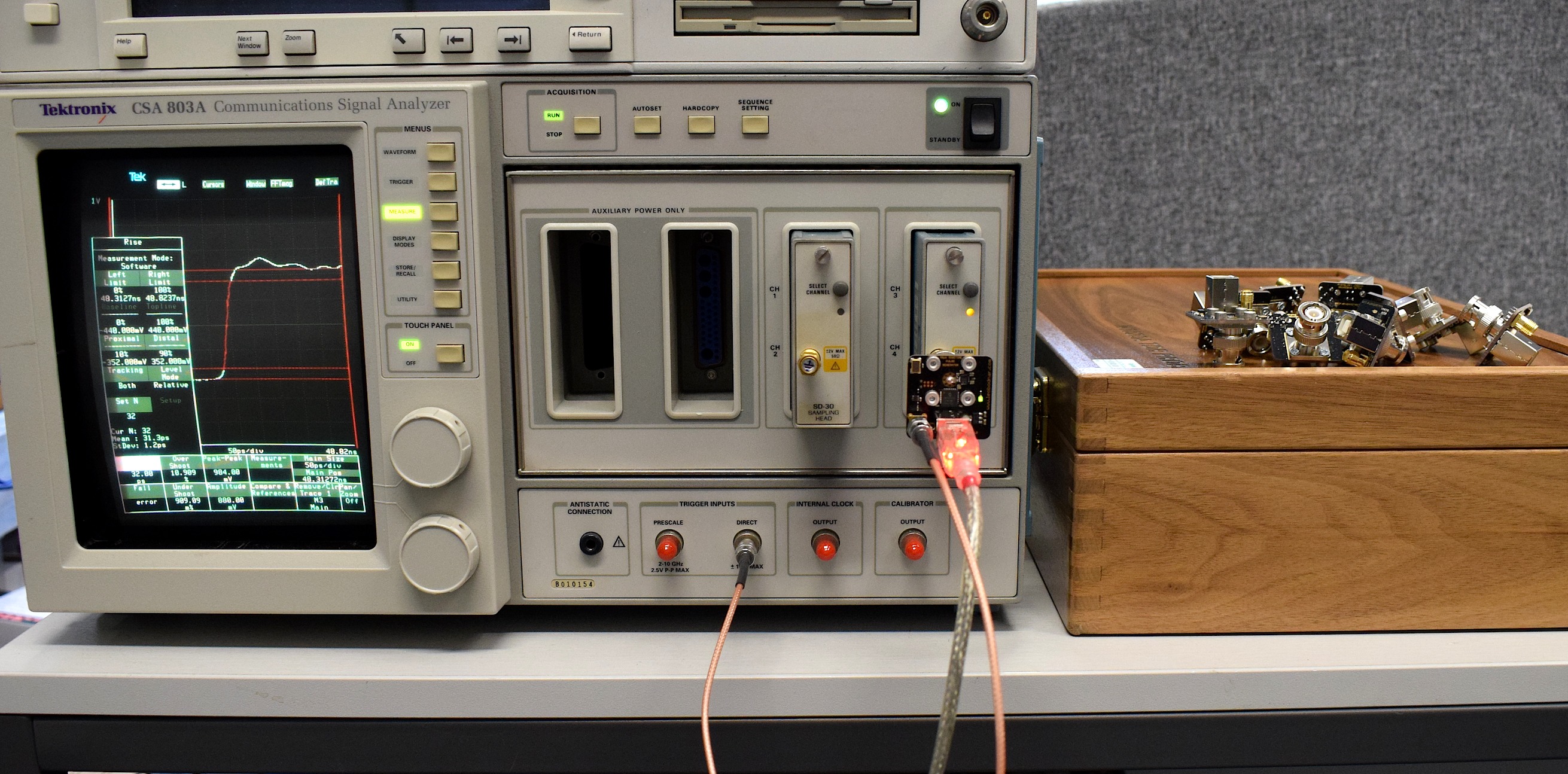

  • Each device is individually tested for rise/fall times and ships with test screen printouts

USB or RF cables are not included.

Designed and made in the UK.

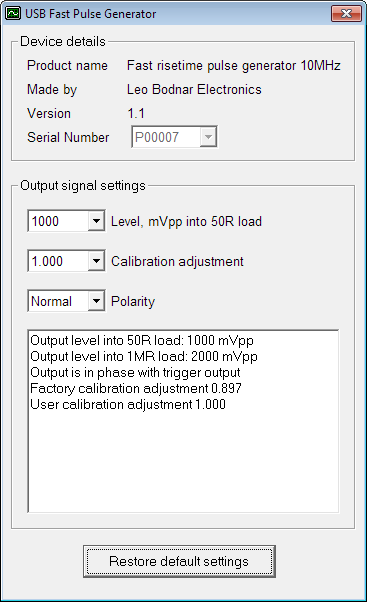

Configuration Software - Click here to download configuration software


  • Manufactured by: Leo Bodnar
